For contractors

Send the drawing.The quote is free.

A simple CAD drawing is normally priced back the same day. Large or complex packages: design fee, or on contract.

Aluminium gates, fencing and pavilions, cut and finished in Hefei to your opening. The present company has been making gates since 2005.

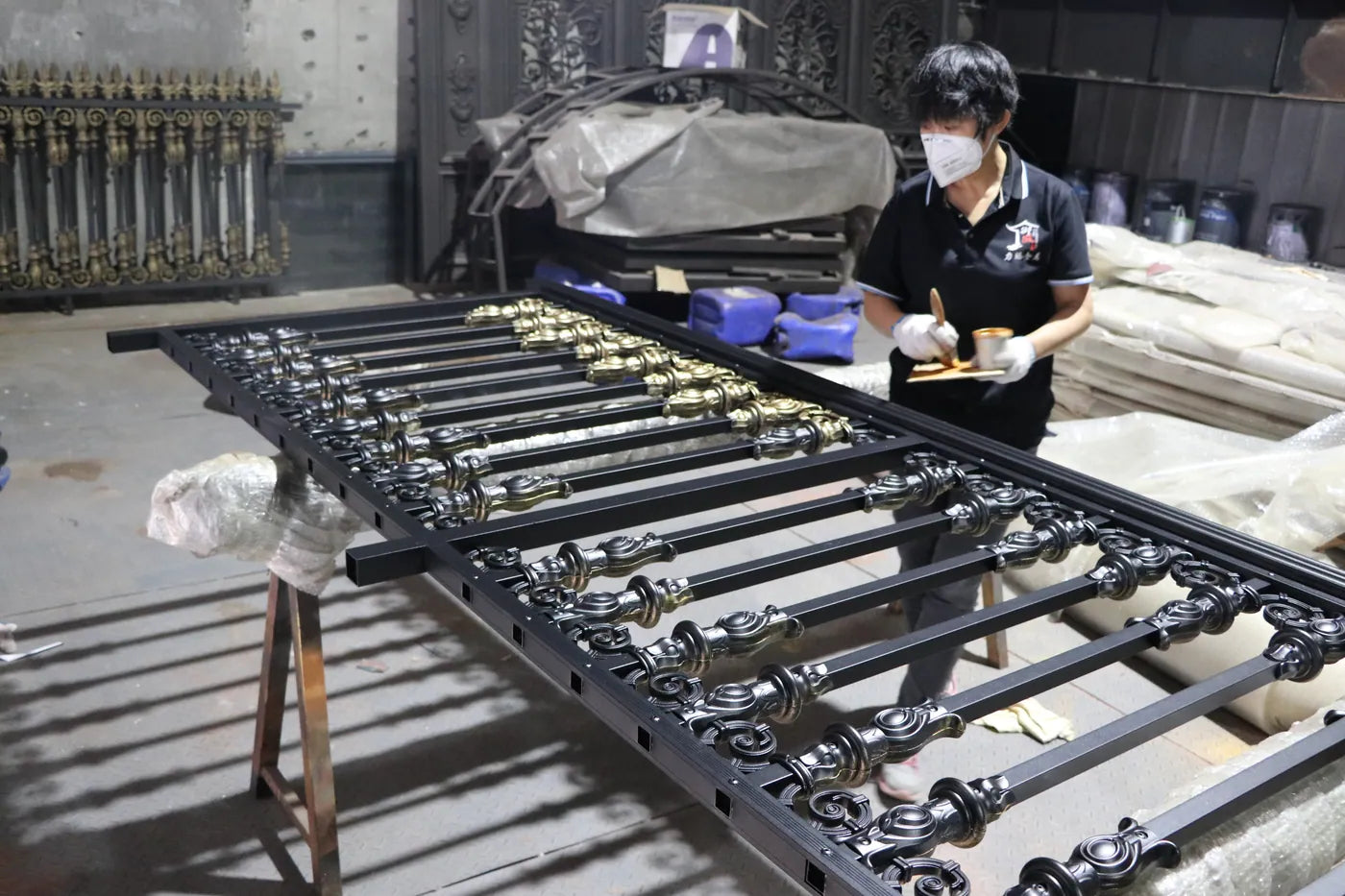

The works, photographed

Our own floor in Hefei, on a phone, unstyled.

Address: Hefei · Anhui · China; Video walk on request — any station.
Qualification: National High-Tech Enterprise, 2023

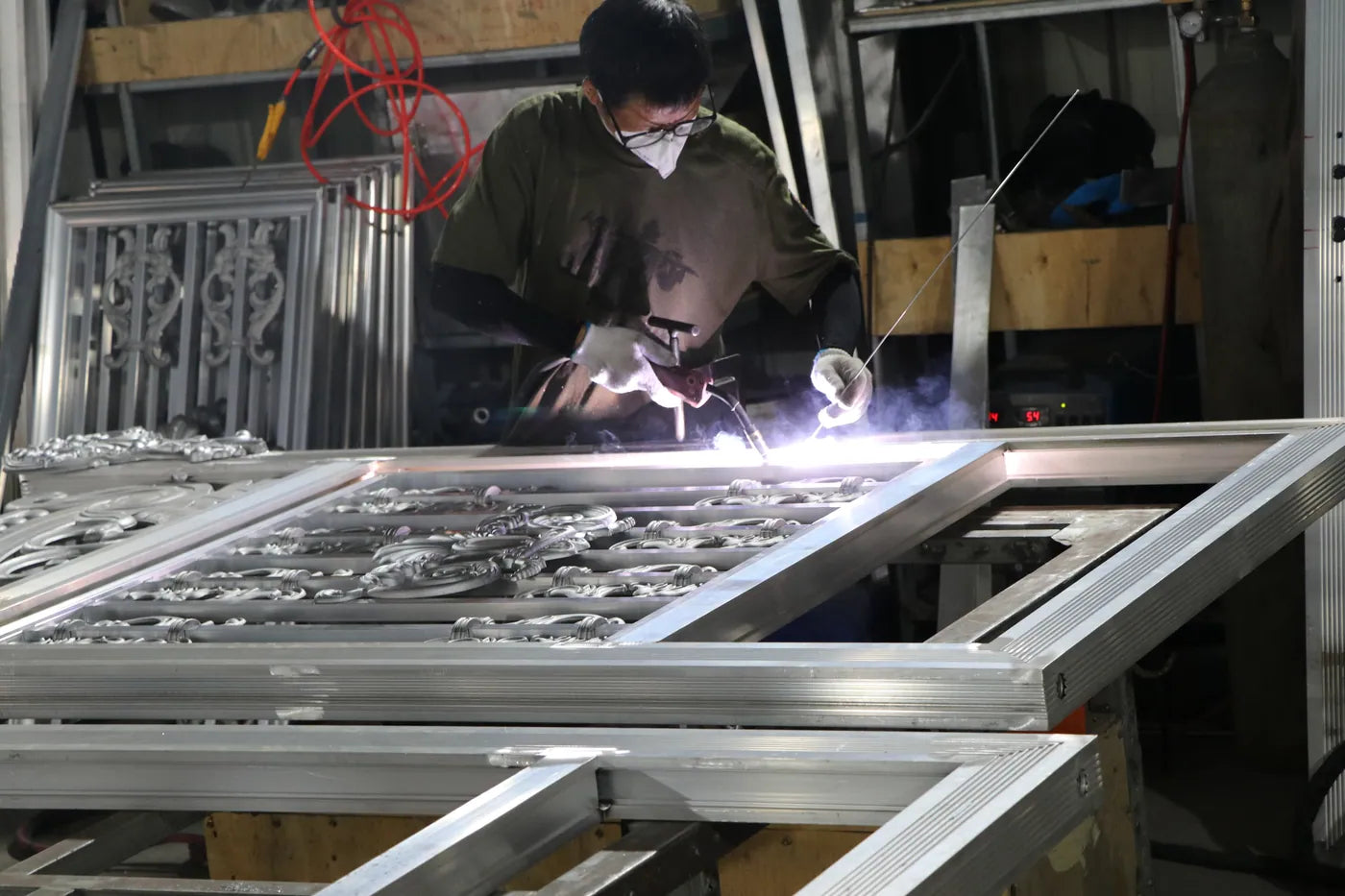

Done in this building: Cutting · welding · grinding · assembly · finishing; Profile and castings bought in — profile from Anhui Guangyin Aluminium. Not extruded here.
Patents: 2019220598961 · 2020301650408 · 2020301650427 · 2020301656669 · 2020301656705; CNIPA · check by number

Confirmed in writing.

Parameter	Figure	Decides
Catalogue	65 designs 25 gates · 31 fencing · 9 pavilions	If your spec is already drawn
Minimum order	None. One set ships; series mix freely in one container.	Whether one opening is enough
Alloy and section	6063-T5 primary aluminium · 3.0 mm wall on the gate frame	Material schedule line
Powder coating	TIGER Coatings, Austria · 80–100 μm film, exterior super-durable grade. Rated by the works: 10–15 years without fading, 30 years on the welded structure.	Finish schedule line
Indicative rate	Gates ¥800–2,000 / m² ≈ US$110–280 · Fencing ¥150–500 / m² ≈ US$21–69 · Pavilions ¥1,500–5,000 / m² ≈ US$210–695 Indicative · product only · converted at ¥7.2 = US$1 · the written quotation is the price	Budget order of magnitude
Incoterms	EXW and DDP. EXW preferred; DDP to any address you give us.	Who books the freight
Non-standard work	Any structure that stands up. Too large for sea freight is jointed on site.	How the opening splits
Technical pack	A PDF data sheet per design, on request.	Your submittal
Supplied with	Complete product, fixings in the crate. Motor and locks extra, not in the rates.	Who fits it
Largest single leaf	7 m × 4 m upper limit built to date, rarely asked for	Where one leaf becomes two
Monthly capacity	1,000 m² of gates or 5,000 m of fencing one or the other	Whether your programme fits
Sets per 40 ft container	Depends on size and quantity — worked out per order.	Freight per set

Three dimensions, and the first reply can carry a price.

W
Structural opening

Clear between the piers, at head, middle and floor. Send the smallest.
H·G
Leaf height and ground gap

From finished level, not as it stands. Flag any fall across the opening.
C/L
Leaf split and swing

Single leaf, double leaf or sliding — and which side takes the hinge.

A fourth line, if it applies: Rake, curve, stepped ground, out-of-square pier, arched head. No size here is standard.
If there is no drawing yet: Three dimensions and a photograph of the opening are enough to start.

Country, product, contractor — that starts the quote. Opening and quantity turn it into a price.

Enquiry route: Contractor; Country, product, contractor — that starts the quote. Opening and quantity turn it into a price.
WhatsApp: +86 173 1854 7857; Normally answered within minutes · Hefei is UTC+8
Email: info@argentgates.com
